Products:
Airflow Controllers (VAV)

Our range of VAV controls are designed specifically to provide variable airflow volume and ensure the safety of users working with industrial and educational fume cupboards, fume hoods and biological safety cabinets.

As many fume cupboard ventilation systems are full fresh air type a high amount of energy is wasted when the fume cupboards are not in use. Converting to VAV can reduce volumes by up to 85%, reducing both energy costs and carbon emissions. TEL offers a full retro fit service and is making a considerable impact on how organisations meet their carbon reduction targets.

Product Benefits

Safety and compliance

Protecting your staff from potentially hazardous fumes and substances and ensuring you stay compliant.

Energy and cost savings

The TEL VAV airflow controller reduces the volume of air taken from the fume cupboard when it is not being used, reducing energy usage by up to 85%, considerably reducing costs.

Carbon emissions reduced

With many organisations having to meet carbon reduction targets, TEL’s VAV airflow controller reduces energy wastage, ensuring reductions in carbon emissions.

Reliability

With no inherent drift, the unique sensor will provide stable readings over many years of operation without re-calibration, ensuring reliability and safety.

Watch our BRAND NEW video for more information about how the AFA4000 works and it’s benefits:
Here’s our video for more information about the AFA1000/BLD:

Choosing the right model

actuator-300x204-300x204

4NM Fumecupboard Actuator

Modulating damper actuator for adjusting dampers in technical building installations.

actuator-e1486555497630

6NM SuperCap Actuator

Modulating SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories.

AFA1000-BLD_RGB-1-e1486555420480

AFA1000/AHU

The AFA1000/AHU model is a wall mounted pressure controller suitable for controlling the duct pressure of an AHU using an inverter drive.

AFA1000-BLD_RGB-e1486555375109

AFA1000/BLD

The AFA1000/BLD is a wall mounted fresh air bleed controller suitable for controlling the VAV system duct pressure using a fresh air bleed damper or fan inverter drive.

AFA1000_E_RGB-e1486555236543

AFA1000/E

The AFA1000/E is a digital airflow VAV controller available with a range of remote unique airflow sensors that are used to measure face velocities or duct velocities. The AFA1000/E is available fully flush (MK2) or semi flush (MK3).

AFA1000-E-MK3_RBG-e1486555275748

AFA1000/E Dual Output

The AFA1000/E has a dual output allowing control of a secondary function such as Supply Air damper/inverter control or Fresh Air bleed damper control.

AFA1000-RM_RGB-e1486555316421

AFA1000/RM

The AFA1000/RM model is a wall mounted room differential pressure controller suitable for controlling the supply air into a room using a damper, valve or inverter.

AFA3000_VAV-ControllerRBG

AFA3000/E

The AFA3000 VAV controller  has been specifically designed for Venturi Valve fume cupboard applications.

The controller will adjust the valve to the desired flow based on sash position. The mechanically pressure independent valve will accurately control and maintain design flows (as the system pressure/sash position changes). As the valve cannot detect changes in the face velocity of the fume cupboard , we incorporate one of our velocity sensors that will increase the flow of the valve if the face velocity drops below desired values.

AFA4000-E_Controller-White-Angled-May20

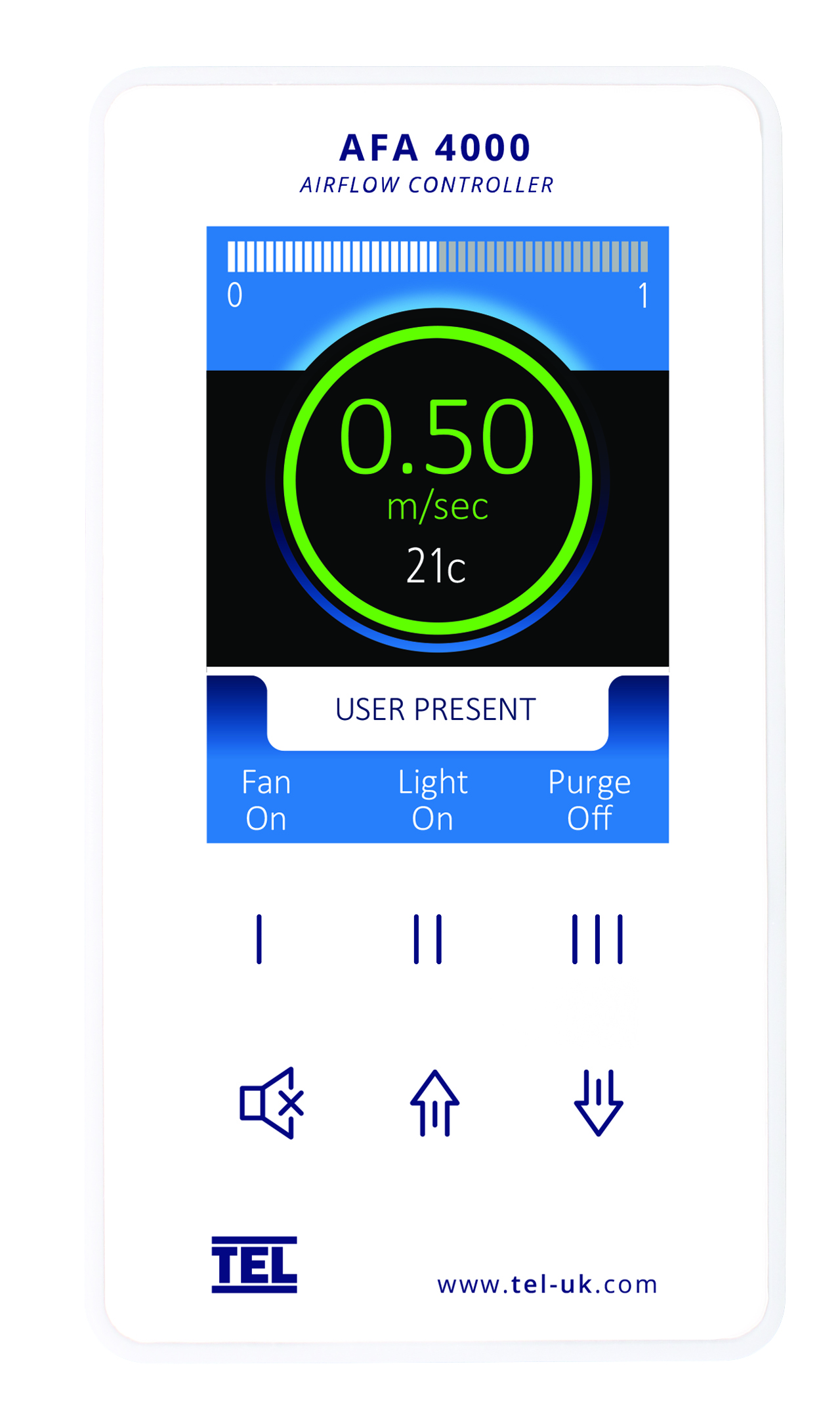

AFA4000/E

The AFA4000/E is a pioneering airflow controlling system developed to ensure the safety of users, working with industrial and educational fume cupboards and biological safety cabinets.

AFA4000-E_Controller_White_Angled_SEPT2024

AFA4000/E/G

The AFA4000/E/GS is an airflow controller with integrated gas sensor that monitors filter saturation status via a dynamic graph. An alarm is triggered when either gas breakthrough is detected, or the filter has fulfilled its manufacturer-designated hours, altering laboratory managers that the filter requires replacement to keep staff safe.

Economy-VAV-Damper-640x524

ECON Damper

A precision engineered single blade butterfly damper designed for many years of maintenance free movement. The clear bodied design allows you to check for any debris caught on the internal blade.

Case Studies for this product

Case Study

Pharma Company, Cambridge, Massachusetts

TEL works with top Pharma Company in Cambridge, Massachusetts, to reduce energy costs and carbon emissions

Case Study

St. Mary’s Medical Centre, Athens, GA

TEL reduces energy bills by more than half at not-for-profit medical centre with one simple change

Case Study

Total Containment Solutions

TEL and TCS partner to deliver energy efficient solution for research laboratory
